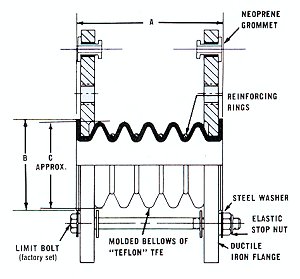

Part No.	Nominal Size (I.D.)	A†		B	C	Maximum Misalignment*	Weight (Lbs.)
		Neutral Length	Maximum Travel ±
R6906-016	1"	3"	1/2"	2"	1-57/64"	1/2"	2
R6906-024	1-1/2"	3-1/2"	3/4"	2-7/8"	2-35/64"	1/2"	5
R6906-032	2"	4"	1"	3-5/8"	3-13/32"	1/2"	9
R6906-048	3"	5"	1"	5"	4-41/64"	1/2"	14
R6906-064	4"	5-1/4"	1-1/4"	6-3/16"	5-11/16"	5/8"	20
R6906-096	6"	6"	1-1/4"	8-1/2"	8"	5/8"	31

† This is an installation dimension; not a limit bolt setting. * At neutral length with limit bolts in place. Note: Angular Deflection approx. 20 degrees. Maximum (axial) travel is based on installation with no misalignment or angular deflection.



Safeguarding 5-Convolute PTFE Expansion Joint The Chemical Plant and Petroleum Refinery Pressure Piping Code, ANSI / ASME B31.3, in Appendix G outlines recommendations for safeguarding piping systems. We subscribe to this emphasis on safety and endorse the code suggestion for shielding bellows units where hazardous fluids are conveyed. See below for information on wrap-around safety shields.

Limit Bolts Limit bolts with elastic stop nuts are factory set at the maximum travel position to prevent over-extension. Severe damage or personal injury can result if the limit bolts and stop nuts are removed to exceed the factory setting, of it non-locking nuts are installed.



Size Code	Nom. Size	D			E			F	G	H	Flange Thickness	J
		Holes	Thread	B.C.*	Holes	Thread	B.C.*		B.C.
-016	1"	4	1/2-13	3-1/8"	4	5/16-18	3-1/8"	1/4"	5-1/8"	4-1/4"	5/16"	6"
-024	1-1/2"	4	1/2-13	3-7/8"	4	5/16-18	3-7/8"	1/4"	5-7/8"	5"	11/32"	6-3/4"
-032	2"	4	5/8-11	4-3/4"	4	5/16-18	4-3/4"	3/8"	6-7/8"	6"	7/16"	8-1/8"
-040	2-1/2"	4	5/8-11	5-1/2"	-	-	-	3/8"	8-1/8"	7"	1/2"	9-3/8"
-048	3"	4	5/8-11	6"	4	5/16-18	6"	3/4"	8-3/4"	7-1/2"	1/2"	10"
-064	4"	8	5/8-11	7-1/2"	8	5/16-18	7-1/2"	3/8"	9-7/8"	9"	5/8"	11-1/8"
-080	5"	8	3/4-10	8-1/2"	-	-	-	1/2"	11-1/2"	10"	3/4"	13"
-096	6"	8	3/4-10	9-1/2"	8	3/8-16	9-1/2"	1/2"	12-1/2"	11"	3/4"	14"
-128	8"	8	3/4-10	11-3/4"	-	-	-	1/2"	14-3/4"	13-1/2"	15/16"	16-1/4"
-160	10"	12	7/8-9	14-1/4"	-	-	-	1/2"	17-1/2"	16"	1"	19"
-192	12"	12	7/8-9	17"	-	-	-	5/8"	20-1/2"	19"	1"	22"

* D & E Bolt circle same as 125 & 150 Lb. ANSI standard.
We can also supply DIN and JIS standards, or other standard or customs flanges.
